Armored Cables

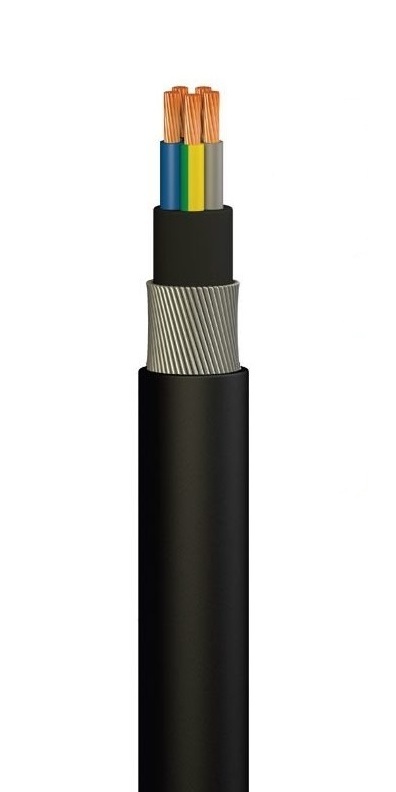

YXZ2V (N2XRY) - XLPE INSULATED, STEEL ARMOURED, MULTI-CORE CABLES

It is designed for underground use, offering excellent resistance to mechanical stress and performing well under demanding conditions. Built to withstand high operating temperatures and short-term temperature spikes, it ensures durability and an extended lifespan.

Conductor	Solid or braided copper
Isolated	Cross-linked polyethylene (XLPE)
Filling	Polyvinyl chloride (PVC)
Armor	Galvanized round steel wire (GSWA)
Outer Cover	Polyvinyl chloride (PVC)

Nominal Section mm²	Approx. Outside Diameter mm	Approximate Net Weight kg/km	Conductor Resistance Max. ohm/km(20°C)	Current Carrying Capacity
Nominal Section mm²	Approx. Outside Diameter mm	Approximate Net Weight kg/km	Conductor Resistance Max. ohm/km(20°C)	In soil (A)	In the air (A)
YXZ2V (N2XRY) (0.6/1 kV)
1×4	10	142	4.61	55	47
1×6	10.5	167	3.08	68	59
1×10	11	215	1.83	91	81
1×16	12.5	280	1.15	117	109
1×25	15.0	430	0.727	150	146
1×35	16	529	0.524	179	179
1×50	18	707	0.387	211	218
1×70	20	929	0.268	257	275
1×95	21	1194	0.193	304	336
1×120	24	1504	0.153	341	388
1×150	26	1794	0.124	377	438
1×185	28	2180	0.0991	418	501
1×240	31	2769	0.0754	469	508
1×300	33	3351	0.0601	514	654
1×400	37	4342	0.0470	565	733
1×500	41	5475	0.0366	623	825
1×630	45	6937	0.0283	690	934
2×1.5	13	310	12.1	31	25
2×2.5	13.5	360	7.41	40	33
2×4	14.5	422	4.61	52	43
2×6	15.5	496	3.08	65	54
2×10	18	772	1.83	87	75
2×16	20	980	1.15	113	100
2×25	24.5	1530	0.727	146	136
2×35	27	1835	0.524	176	165
2×50	30	2270	0.387	208	201
2×70	33	2915	0.268	256	255
2×95	38	4025	0.193	307	314
2×120	41	4785	0.153	349	364
2×150	45	5670	0.124	391	416
2×185	50	7230	0.0991	442	480
2×240	56	9040	0.0754	509	565
3×1.5	13	334	12.1	31	25
3×2.5	14	390	7.41	40	33
3×4	15	472	4.61	52	43
3×6	16	560	3.08	65	54
3×10	19	875	1.83	87	75
3×16	21	1130	1.15	113	100
3×25	26	1790	0.727	146	136
3×35	28	2190	0.524	176	165
3×50	31	2725	0.387	208	201
3×70	37	3900	0.268	256	255
3×95	40	4900	0.193	307	314
3×120	44	5910	0.153	349	364
3×150	49	7440	0.124	391	416
3×185	54	8970	0.0991	442	480
3×240	60	11200	0.0754	509	565
3×300	69	14799	0.0601	638	580
3×400	82	18855	0.0470	746	663
3×25/16	29	1985	0.727/1.15	146	136
3×35/16	30	2353	0.524/1.15	176	165
3×50/25	34	3000	0.387/0.727	208	201
3×70/35	39	4150	0.268/0.524	256	255
3×95/50	43	5260	0.193/0.387	307	314
3×120/70	48	6490	0.153/0.268	349	364
3×150/70	53	8070	0.124/0.268	391	416
3×185/95	57	9620	0.0991/0.193	442	480
3×240/120	63	12210	0.0754/0.153	509	565
3×300/150	70	15600	0.0601/0.124	683	580
3×400/185	80	20750	0.0470/0.0991	746	663
4×1.5	14	374	12.2	31	25
4×2.5	15	440	7.41	40	33
4×4	16	536	4.61	52	43
4×6	18	784	3.08	65	54
4×10	20	1015	1.83	87	75
4×16	23	1470	1.15	113	100
4×25	28	2125	0.727	146	136
4×35	31	2600	0.524	176	165
4×50	34	3260	0.387	208	201
4×70	40	4680	0.268	256	255
4×95	44	5920	0.193	307	314
4×120	49	7610	0.153	349	364
4×150	54	9180	0.124	391	416
4×185	59	11000	0.0991	442	480
4×240	65	13700	0.0754	509	565
4×300	72	19303	0.0601	683	580
4×400	86	22800	0.0470	746	663
5×1.5	15	412	12.1	31	25
5×2.5	16	495	7.41	40	33
5x	18	742	4.61	52	43
5×6	19	880	3.08	65	54
5×10	22	1170	1.83	87	75
5×16	25	1700	1.15	113	100
5×25	30	2450	0.727	146	136
5×32	33	3030	0.524	176	165
5×50	38	4200	0.387	208	201
5×70	43	5520	0.268	256	255
5×95	49	7470	0.193	307	314
5×120	54	9150	0.153	349	364
5×150	59	10900	0.124	391	416
5×185	64	12980	0.0991	442	480
5×240	71	17400	0.0754	509	565
